Faraday Rotator & Isolator-TORNOS

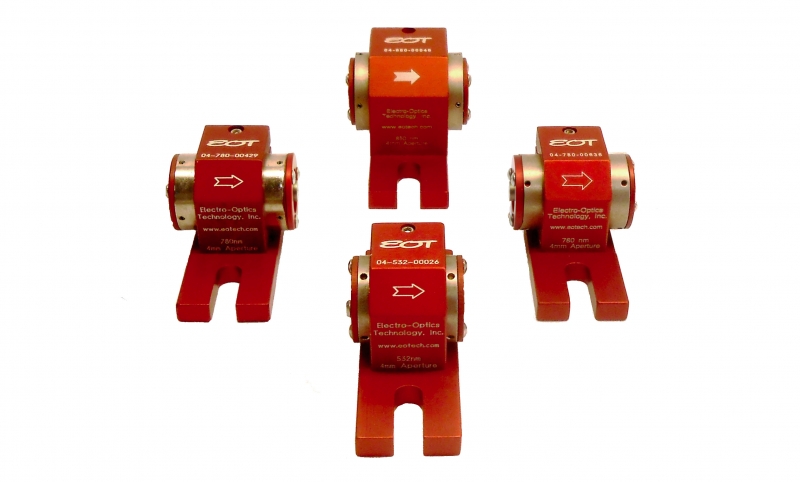

TORNOS Faraday Rotators - 500 nm to 1030 nm
4mm Aperture
* FEATURES
- Wavelength tunability
- Attain 60 dB using two isolators in series
- Mounting clamp
- All isolators contain rejected beam escape ports
* OPTIONS
- Choice of dichroic glass polarizers or polarizing beam splitter cube polarizers
- Input/output waveplates available
- Customization available
* APPLICATIONS
- Environmental Sensing
- Microscopy
- Spectroscopy
- DNA Sequencing
- Laboratory and R&D use
- Protecting pump lasers in amplified systems
- Wavelength tunability
- Attain 60 dB using two isolators in series
- Mounting clamp
- All isolators contain rejected beam escape ports
* OPTIONS
- Choice of dichroic glass polarizers or polarizing beam splitter cube polarizers
- Input/output waveplates available
- Customization available
* APPLICATIONS
- Environmental Sensing
- Microscopy
- Spectroscopy
- DNA Sequencing
- Laboratory and R&D use
- Protecting pump lasers in amplified systems
| 제조사 | Electro-Optics Technology, Inc. |
|---|---|
| 가격 | TBD |
| 문의 | 정세웅책임/기술, 권석부장/영업 (T.02-3461-1103) |
제품 특징
TORNOS Faraday Rotators - 500 nm to 1030 nm
EOT's TORNOS Faraday Rotators rotate the plane of polarized light 45° in the forward direction and an additional 45° of non-reciprocal rotation in the reverse direction while maintaining the light's linear polarization.
| Center Wavelength | Isolation at 22 °Ca | Transmission at 22 °Cb | Pulsed Damage Threshold | |
| 532 nm | 4 mm | ≥30 dB | >97% | 3 J/cm² at 10 ns |
| 650 nm | ≥30 dB | >98% | 3 J/cm² at 10 ns | |
| 780 nm | ≥30 dB | >98% | ||
| 850 nm | ≥30 dB | >98% | 3 J/cm² at 10 ns | |
| 980 nm | ≥30 dB | >98% | 3 J/cm² at 10 ns |
Product specifications are subject to change. All products are RoHS compliant.
a When placed between crossed polarizers having an extinction ratio of ≥1000:1
b At center wavelength
