Fourth Harmonic Generation – Frequency Quadrupling for Tunable and Fixed Frequency Laser

Datasheets & Brochures

APE HarmoniXX Harmonic Generation SHG THG FHG rev 3.2.0 (pdf / english)

Fourth Harmonic Generation

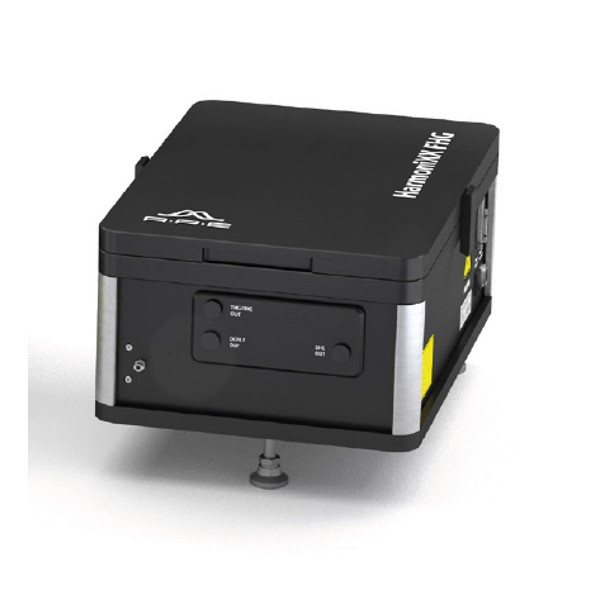

As part of our HarmoniXX product line, the HarmoniXX FHG – Fourth Harmonic Generation – is a frequency converter for quadrupling the frequency of ultra short-pulse lasers. As a result, the final frequency is four times of the frequency of the incoming laser beam.

User-friendly Design

The focus is on user-friendliness and a compact design. By featuring a quick exchange of optics, the HarmoniXX devices can be used for a wide pulse duration range, from femtoseconds (fs) to several picoseconds (ps). All units are optimized for highest conversion efficiency at various laser power levels. They also display minimum pulse broadening while maintaining good spatial beam profile.

At a Glance

Fourth Harmonic Generation FHG
High conversion efficiency
Easy alignment and automatic wavelength tuning
Suitable for both tunable and fixed frequency fs and ps lasers
Excellent pointing stability and beam profile
Remote operation via software GUI

Laser ARPES with FHG 3+1 for Deep UV 190 nm

Tunable deep-UV pulses from 190 nm – 215 nm / 6.5 – 5.77 eV are available with APE’s HarmoniXX FHG 3+1. It is ideally suited for ARPES (Angle-resolved photoemission spectroscopy).

Discover

Creating an Artificial Sun for Solar Cell Calibration

A novel facility for the primary calibration of reference solar cells has been realized. The fs-laser setup equipped with HarmoniXX enables the calibration of World Photovoltaic Scale (WPVS) reference solar cells with an uncertainty of only 0.4% – a new world record.

Discover

Full Support for Industry Standards and Homebuilt Systems

HarmoniXX: The Industry Standard

The well-established HarmoniXX family handles a wide variety of laser systems, pulse widths, and wavelengths from different manufacturers and homebuilt solutions.

Chameleon Coherent Mira 900 Coherent Chameleon Compact OPO Coherent/APE Mira OPO Coherent/APE Discovery Coherent Chameleon Vision Coherent Chameleon Ultra Fidelity Coherent Paladin Advanced Coherent + Levante Emerald OPO Coherent/APE RegA Coherent Vitara Coherent Inspire Spectra Physics Inspire OPO Spectra Physics MaiTai Spectra Physics Tsunami Spectra Physics taccor tune Laser Quantum Levante IR OPO APE Levante Emerald OPO APE picoEmerald APE Emerald Engine APE OPO-X APE Goji Amplitude Orange HP + Levante IR Menlo/APE FemtoFiber ultra 1050 + Levante IR Toptica/APE Aeropulse NKT

Specifications

HarmoniXX FHG 2+2 Specification
Input Wavelength Range	840 ... 920 nm (other wavelengths on request)
Output FHG	Down to 210 nm (e.g. 210 ... 230 nm for TiSa) Down to 190 nm (e.g. 190 ... 210 nm for TiSa) with FHG 3+1 (see specs below)
Output SHG	Available
Output Fundamental	Available
Pulse Duration	fs or ps
Output SHG	Available
Conversion Efficiency	FHG < 4 % (fs)* *depends on laser model / pulse duration
Walkoff Compensation	Built-in mechanical walkoff compensator
Output FHG	Down to 210 nm (e.g. 210 ... 230 nm for TiSa) Down to 190 nm (e.g. 190 ... 210 nm for TiSa) with FHG 3+1 (see specs below)
Polarization (Linear)	Input: horizontal, FHG Out: horizontal, SHG Out: vertical, Fundamental Out: horizontal
Automation	Fully Motorized, GUI /Software included, Auto Power Adjustment as Option

Options
Auto Power Adjustment	Automated output power optimization at the press of a button
Quick Exchangable Optics Set	Wavelength range exchange sets; Pulse duration exchange set fs - ps

FHG 3+1 Specification
Input Wavelength Range	760 ... 920 nm (other wavelengths on request)
Output SHG, THG	Available
Output Fundamental	Available
Conversion Efficiency	FHG < 0,1 % (fs)* *depends on laser model / pulse duration
Polarization (Linear)	Input: horizontal, FHG Out: vertical, THG Out: horizontal, SHG Out: vertical, Fundamental Out: vertical
Automatization	Not included; Available on request
