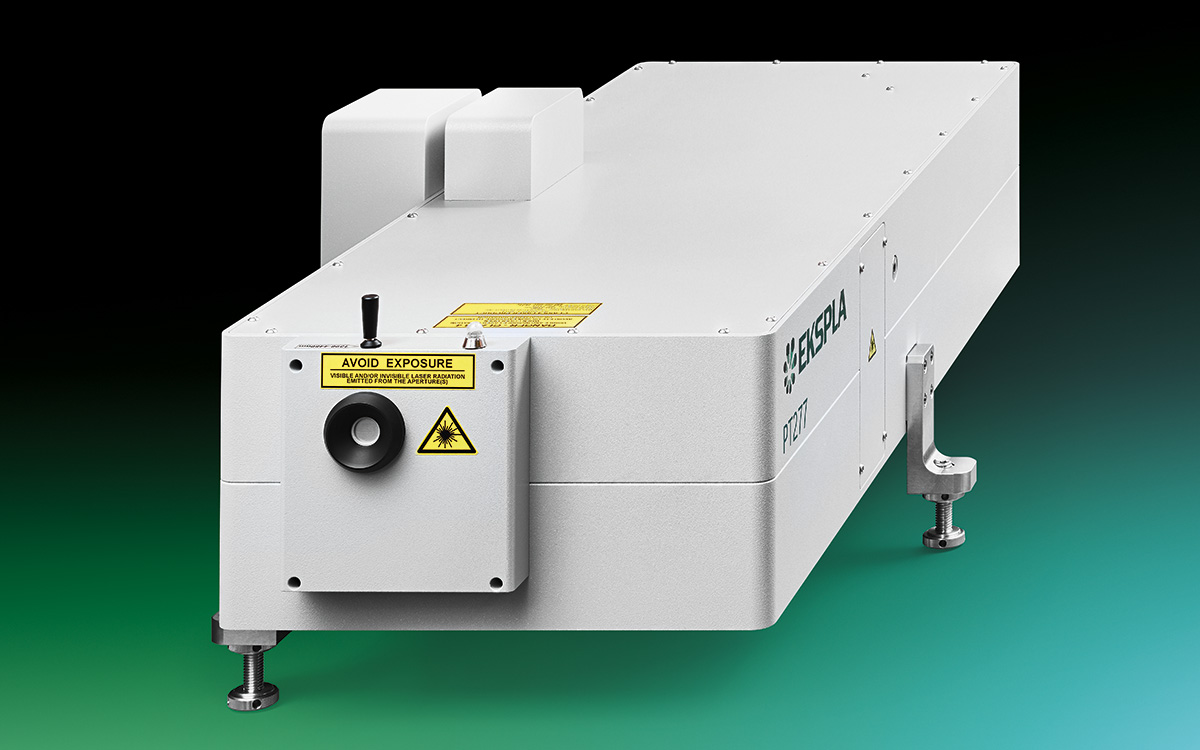

PT277 series laser systems integrate a picosecond optical parametric oscillator and DPSS pump laser into a single compact housing. Mounting the components into one frame provides a cost-effective and robust solution with improved long-term stability and reduced maintenance costs.
The tuning range is for the model PT277 1400 – 2050 and 2200 to 4450 nm with nearly Fourier transform limited linewidth.
The microprocessor-controlled wavelength tuning is fully automatic. The wavelength controlling elements are mounted on precise micro‑stepping motors. The temperature of the non‑linear crystal is controlled by a precise thermocontroller with a bidirectional Peltier element, resulting in the fast tuning of crystal temperature. For customer convenience the system can be controlled through its USB type PC interface (RS232 is optional) with LabView™ drivers or a user-friendly remote control pad. Both options allow easy control of system settings.
|OPO/OPG SPECIFICATIONS 1)|
|Pulse repetition rate 2)||87 MHz|
|Signal||1400 – 2050 nm|
|Idler||2200 – 4450 nm|
|Output power 3)|
|OPO/OPG 4)||300 mW|
|Linewidth 4)||< 0.3 cm-1|
|Typical pulse duration 4) 5)||70 ps|
|Typical beam diameter 4) 6)||~2 mm|
|Typical beam diameter, Idler 4) 6)||~5 mm|
|Typical beam divergence 4) 7)||< 2 mrad|
|Unit size (W×L×H)||370 × 800 × 260 mm|
|Power supply size (W×L×H)||520 × 500 × 290 mm|
|Umbilical length||2 m|
|Room temperature||22 ± 2 °C|
|Relative humidity||20 – 80 % (noncondensing)|
|Power requirements||100 – 240 V AC, single phase 50/60 Hz|
|Power consumption||< 1 kVA|
Note: Laser must be connected to the mains electricity all the time. If there will be no mains electricity for longer that 1 hour then laser (system) needs warm up for a few hours before switching on.
